Lithium Ion Polymer (LiPo) batteries, such as the ones I used from Adafruit, often come pre-attached with a 2-pin JST-PH male connector that slots straight into a JST-PH jack on whatever device requires powering. This is great for permanently on devices, but I often want to turn my devices on and off by connecting and disconnecting the power from the battery.



So, I made a switch using a male and female JST-PH connector and jack and a switch. (Hindsight says this would have been slightly easier if I had adapted a JST-PH battery extension cable!)

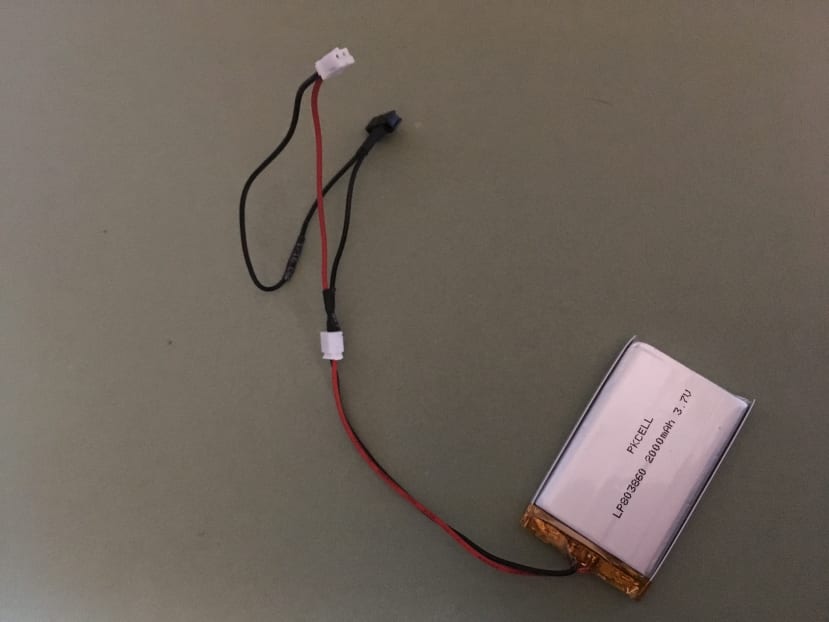

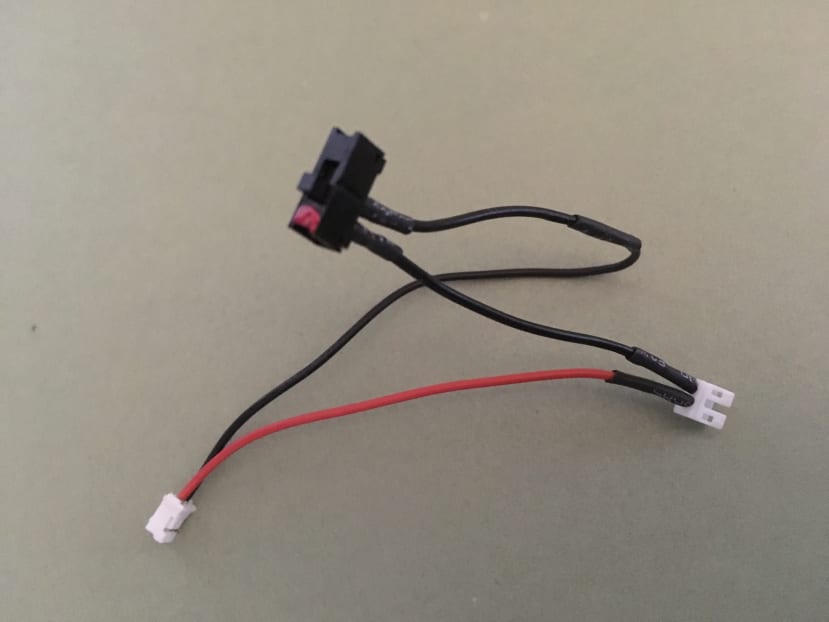

One side of the switch was connected directly to the negative terminal on a JST-PH male connector. The other side of the switch connected to the negative terminal of a JST-PH female jack. The positive terminal of the JST-PH male connector was wired directly to the positive terminal on the JST-PH female jack. I have used a dab of red nail varnish to indicate the "on" position.
