Space Saving TDK Power Solution: Xilinx New Artix UltraScale+

Follow article

TonyOchoa 9 Sep 2021

1 0 1

Power solutions from TDK solve spacing needs for light and small System on Modules (SoM) cards and other small form factor applications around Xilinx Artix UltraScale+ FPGAs.

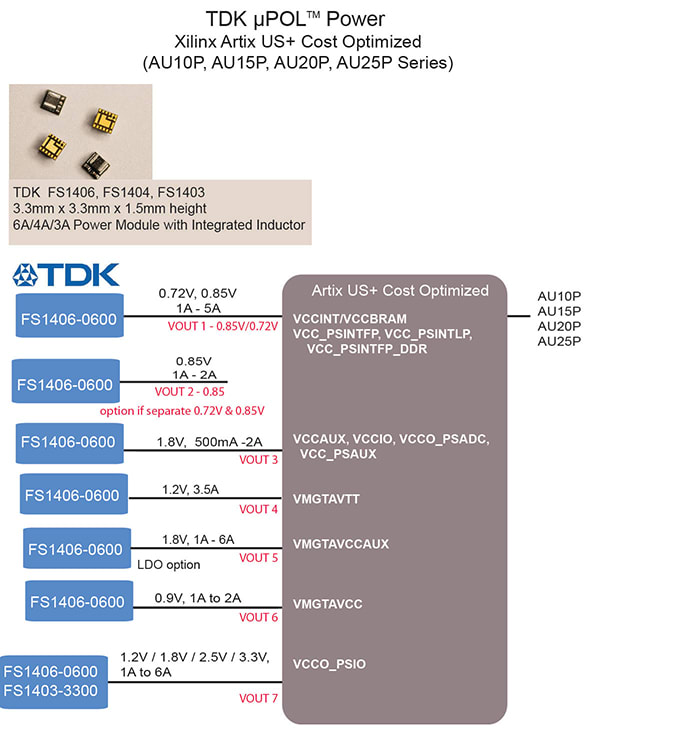

TDK - Xilinx Artix Configuration

FPGAs and SoCs require various DC-DC voltage regulation. TDK's FS1406, FS1404 and FS1403 are chip embedded power modules with minimum BOM and design flexibility.

FS1406, FS1404 and FS1403 power modules included the integrated inductor at an industry best 3.3m x 3.3mm x 1.5mm height package.

The attachments includes:

power map
fast design schematics for power rails for the Xilinx Artix UltraScale+.

Also available from TDK is the OrCAD (DSN) schematics that can be imported into DesignSpark PCB.

Downloads

Schematics for fast TDK power design for Xilinx Artix UltraScale+
PDF, 137.9 kB

TonyOchoa Follow

Tony Ochoa Faradaysemi, A TDK Group Company Tony Ochoa is the director of marketing at TDK, supporting mixed signal analog in both precision and power. He has over 30 years of industry experience, and has worked for Analog Devices, National Semiconductor, Infineon, and several other start-up in the Silicon Valley area. He holds a BSEE from the University of California and MBA. When not working on engineering, you will find him in the waves in Oceanside, California.
