This tutorial requires:

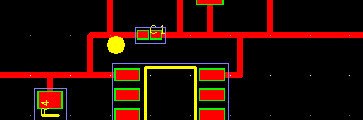

DesignSpark PCB V11.0.0If you have completed the placement of tracks but still have an air wire showing as below:
Run the Optimise Nets function from ‘Tools’ on the menu bar or use the short cut Ctrl + D.
The correctly routed air wires will be removed.
